Prusa - Magnetic heatbed MK52 24V (assembly)
Prusa - Magnetic heatbed MK52 24V (assembly)
Regular price
$197.83 AUD
Regular price
Sale price
$197.83 AUD
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

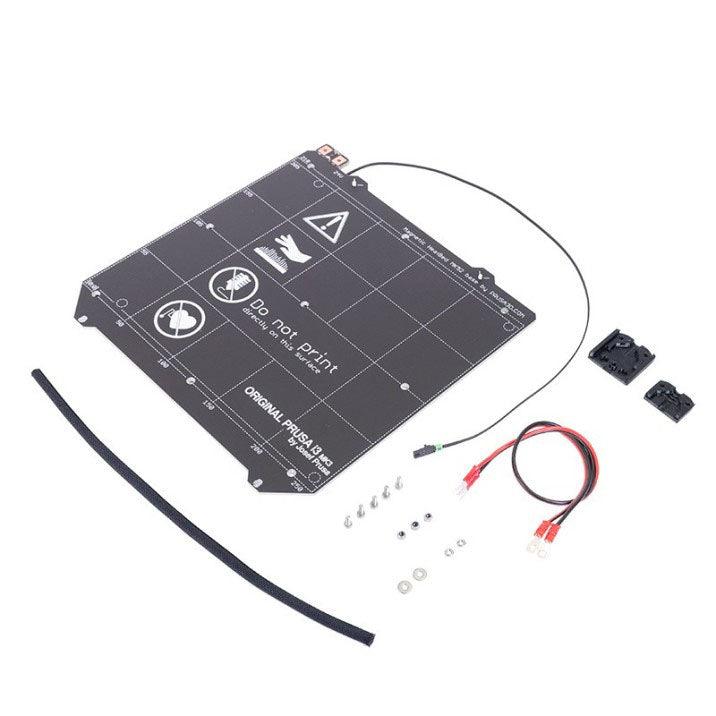

This product includes:
- Magnetic heatbed MK52 24V (1pcs)
- Heatbed-Einsy power cable (screw-attached) (1pcs)
- Heatbed thermistor E3D (already mounted and fixed in place by the aluminium and kapton tapes) (1pcs)
- Textile sleeve (Length: 300mm, Width: 5mm) (1pcs)
- Heatbed cable cover (1pcs)
- Heatbed cable cover clip (1pcs)
- Nuts: M3nN (3 pcs), M3n (3pcs)
- Screws: M3x10 (5pcs)
- Washers: M3/3,2/9/0,8 (2pcs)
Specifications:
Height: 264.4mm
Width: 254mm
Thickness: ~3.175mm
Maximum working temperature: 120°C
Maximum recommended temperature: 110°C
Voltage: 24V
Current: 6.25A
Magnets: 45SH Neodym block magnet (28 pcs), attached by Loctite HY 4090
To replace the parts, please consult the Prusa Assembly Manuals. Make sure to follow the manual for your printer model.
